FOTON_Tractor_6x4_EST-A

FOTON_Auman_EST-A_6x4_Tractor

■主要特性 Main features

1) ZF AMT

2) Cummins engine, 460 HP, maximum traction 49 tons

3) Rear axle speed ratio 2.714:1(Optional: 3.364)

4) Emission Euro.4

5) Right hand drive(Left hand drive is optional)

6) High roof, comfortable driving experience

7) Steel plate spring+airbag suspension

■基本信息 Basic info.

卡车类型 Truck type: 重卡牵引车 Heavy truck tractor

卡车系列 Truck series/platform: 欧曼 Auman EST-A

发动机型号 Engine model: ISG12

变速箱品牌/类型 Transmission brand / type: ZF / AMT

■尺寸参数 Vehicle size

驱动布局 Drive Layout: 6×4,Mid & Rear drive axle

轴距 Wheelbase: 3300+1350

整车（底盘）外形尺寸 Overall dimensions of the vehicle (chassis)(mm): 7135×2490×3950

■质量参数 Weight

整车重量 Vehicle weight(kg): 8800

总质量 Total weight of the vehicle(kg): 26000

***牵引重量 Maximum traction weight(kg): 49000

■车身 Cab.size

车身宽度 Body width(mm): 2490

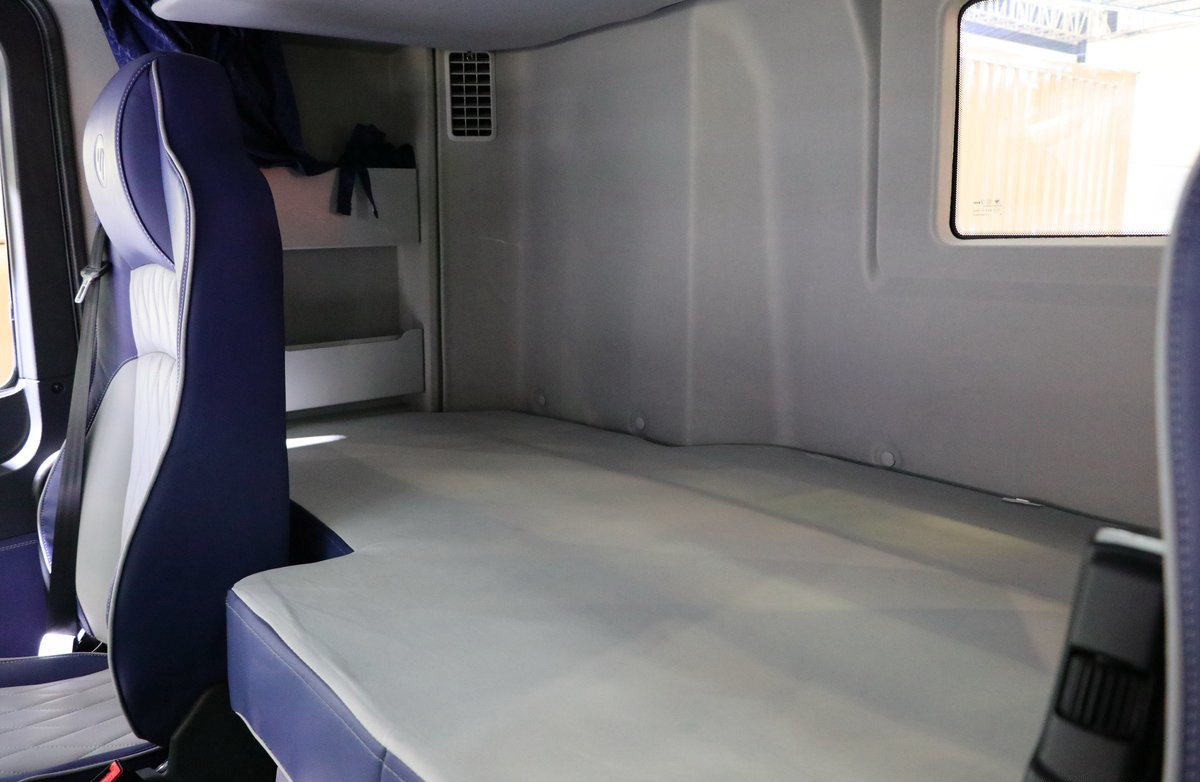

顶高 Cab.type: 高顶 High roof

左右舵 Left or right rudder: 左右舵可选 , Right hand drive(Left hand drive is optional)

座位数（载人数） Seating capacity (number of passengers): 2

■动力总成 Engine

燃油种类 Fuel type: 柴油 Diesel

发动机 Engine: ISGe4-460

发动机厂家 Engine manufacturer: 福康发动机 BFCEC/Cummins

排量 Displacement(ml): 11800

排放标准 Emission standard: 欧Ⅳ Euro.4

排放路线 Emission route: SCR

马力 Horsepower: 460 HP

发动机扭矩(Nm/rpm) Engine torque (Nm/rpm): 2300/1100

变速箱厂家/型号 Transmission manufacturer/model: ZF,12TX2420TD,AMT

■底盘系统 Chassis

前桥承载 Front axle carrying capacity(T): 6.5T

中/后桥承载 Middle/rear axle carrying capacity(T): 13T

驱动桥速比 Drive axle speed ratio: 2.714:1 (Optional: 13t (469) rear axle, imported hub unit, speed ratio: 3.364, self-adjusting arm ABS)

制动类型 Brake type: 气刹 Air brake

制动形式 Braking form: 前盘后盘 Front disc brake and rear disc brake

制动控制系统 Brake control system: ABS

轮胎型号 Tire type: 295/80R22.5 18PR 混合

轮胎数量 Number of tires: 11

转向机型号 Steering gear model: ZF8098

油箱容积/材质 Fuel tank volume/material: 420L+260L铝合金 aluminum alloy

悬架形式 Suspension form: 板簧+气囊  Steel plate spring+airbag

板簧片数 Number of leaf springs: 3

车架断面尺寸/mm Frame section size(mm): 225/286×80×8+0

■功能配置 Standard configuration

空调标配 Standard air conditioner: 自动空调 Automatic air conditioner

娱乐系统（含雷达）标配 Entertainment system standard configuration: MP3+收音机radio+USB+Non radar

车身组合（座椅、门窗、后视镜）标配 Body combination (seats, doors and windows, rearview mirror) standard configuration: 电动门窗+中控锁+遥控门锁+五锁统一+气囊座椅（中配）+电动带电热后视镜,

Electric doors and windows+central locking+remote control door lock+five lock unified+airbag seat (central configuration)+electric heated rearview mirror
